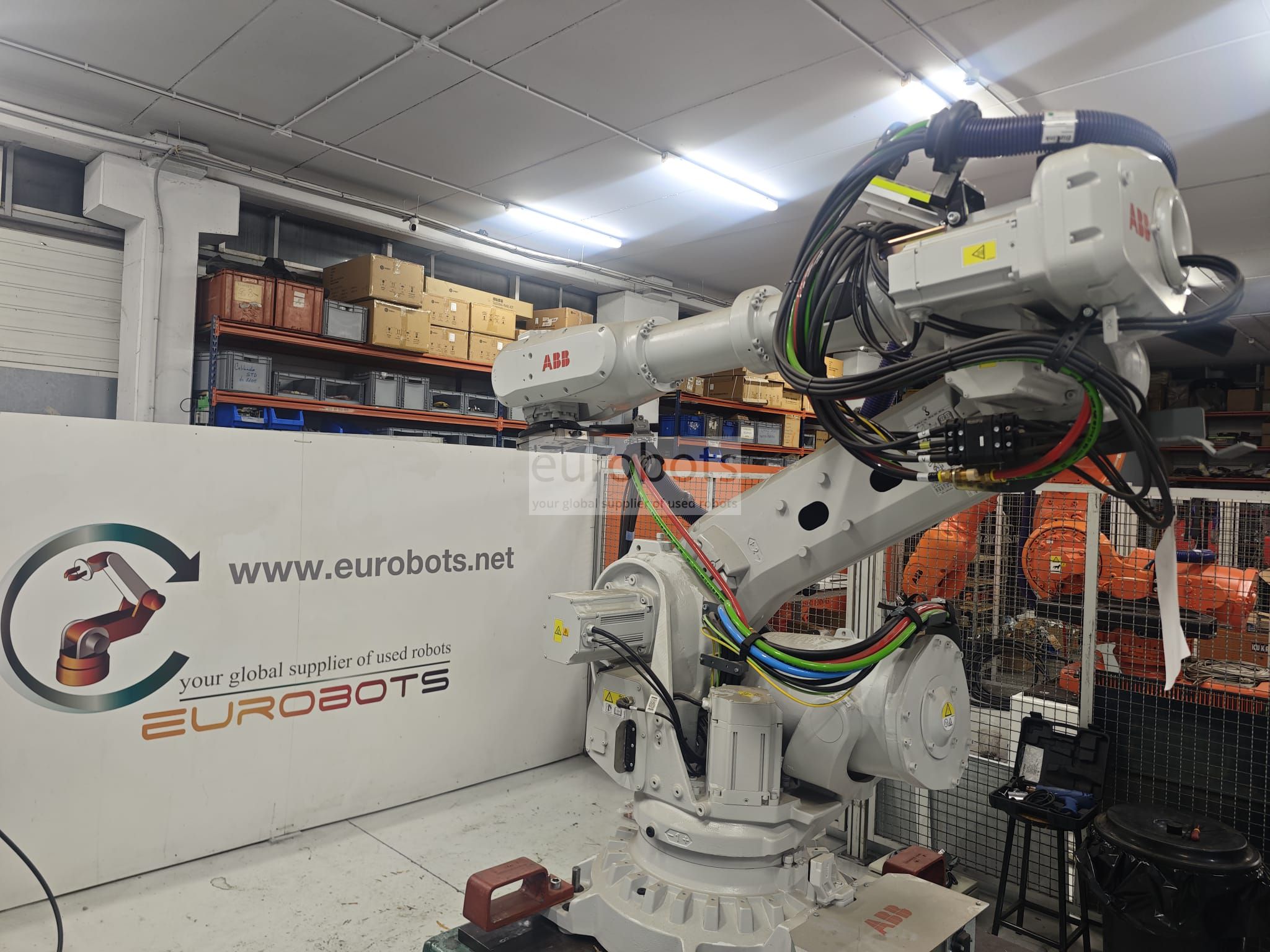

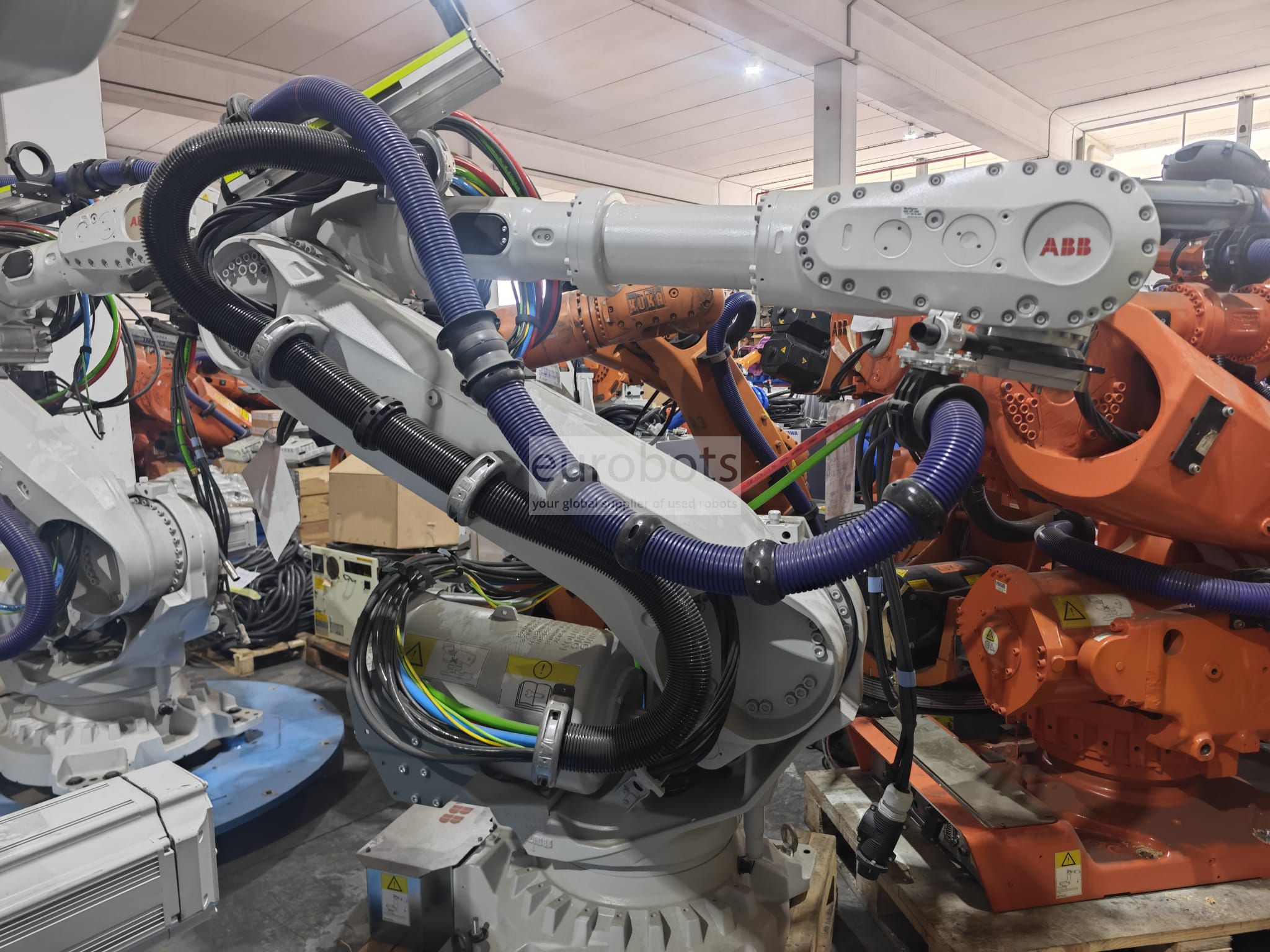

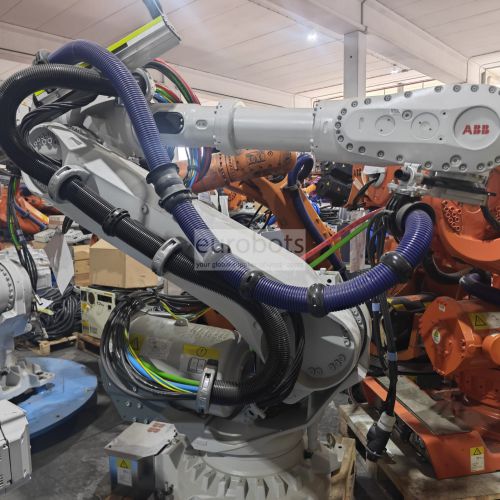

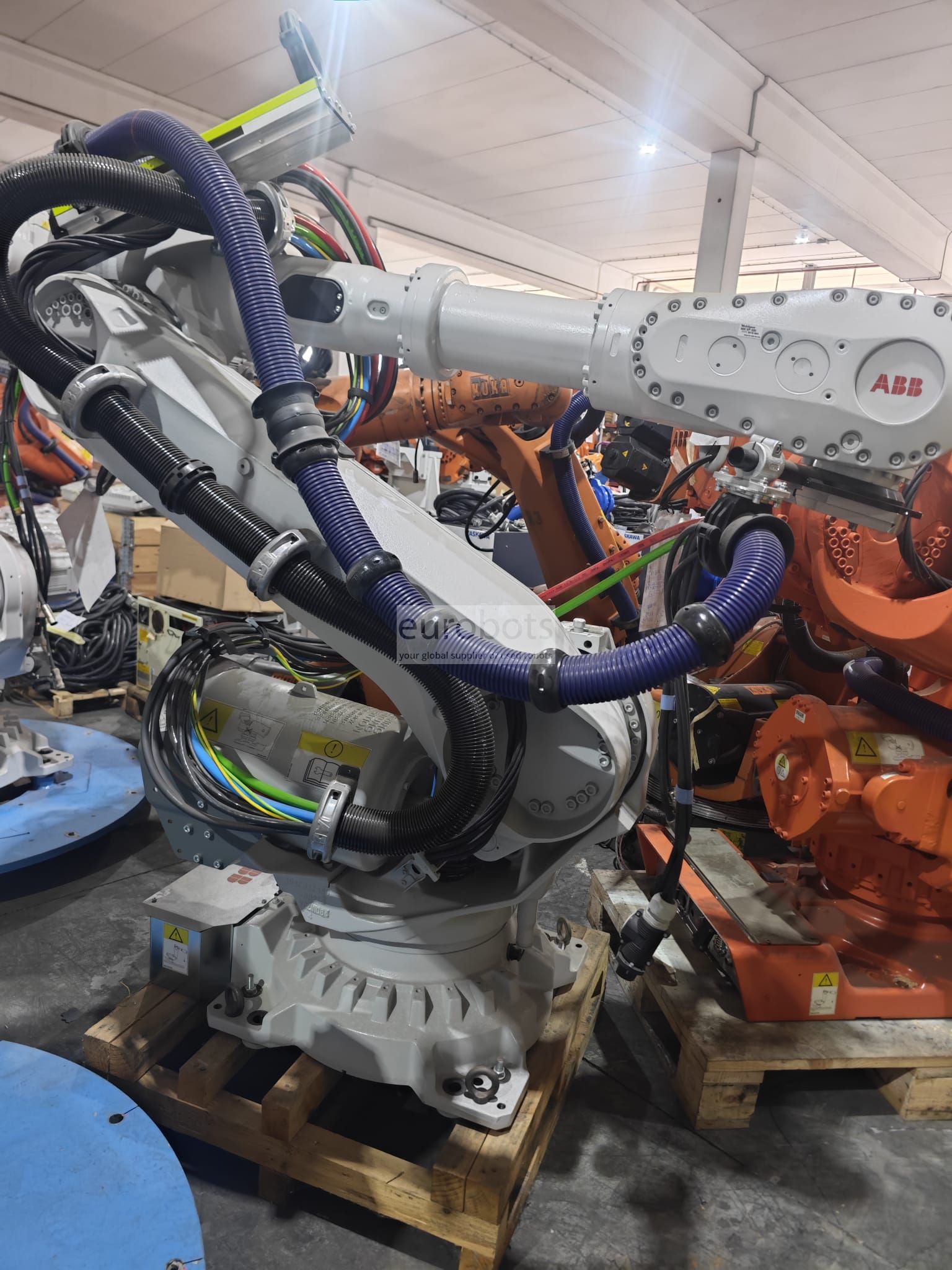

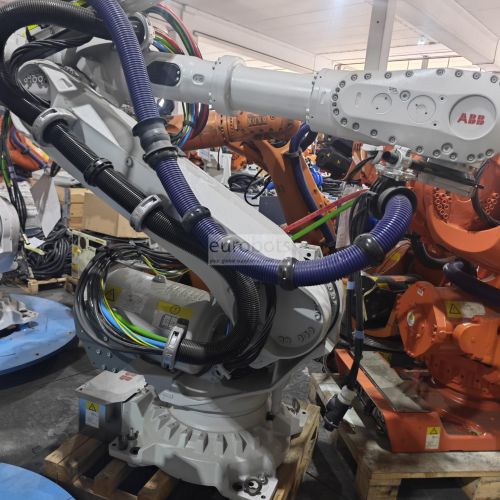

ABB IRB 6700

无现货

信息
规格

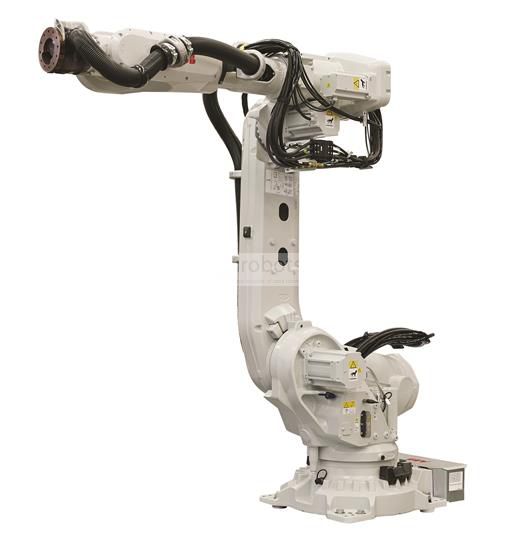

机器人IRB 6700是第七代ABB机器人的一部分，它具有多项改进，其设计更加坚固，总拥有成本降低20％，精度更高，周期时间更短，维护最少，可在恶劣环境下工作的最佳保护可用于Foundry Plus 2和150至300公斤的负载能力，可提供更高的性能和更高的效率。这一代带来10款多功能车型。配备IRC5控制器。

Main specifications

Robot version	IRB 6700- 200/2.60	IRB 6700- 155/2.85	IRB 6700- 235/2.65	IRB 6700- 205/2.80	IRB 6700- 175/3.05	IRB 6700- 150/3.20	IRB 6700- 300/2.70	IRB 6700- 245/3.00	IRB 6700 Inv-300/2.60	IRB 6700 Inv-245/2.90
Maximum Load of Robot	200 kg	155 kg	235 kg	205 kg	175 kg	150 kg	300 kg	245 kg	300 kg	245 kg
Maximum reach	2600 mm	2850 mm	2650 mm	2800 mm	3050 mm	3200 mm	2700 mm	3000 mm	2600 mm	2900 mm
Number of axis	6	6	6	6	6	6	6	6	6	6
Position repeatability RP	0.10 mm	0.10 mm	0.10 mm	0.10 mm	0.10 mm	0.10 mm	0.10 mm	0.10 mm	0.10 mm	0.10 mm
Path repeatability RT	0.06 mm	0.12 mm	0.08 mm	0.12 mm	0.08 mm	0.12 mm	0.14 mm	0.07 mm	0.22 mm	0.10 mm
Controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller

Range of motion

Robot version	IRB 6700- 200/2.60	IRB 6700- 155/2.85	IRB 6700- 235/2.65	IRB 6700- 205/2.80	IRB 6700- 175/3.05	IRB 6700- 150/3.20	IRB 6700- 300/2.70	IRB 6700- 245/3.00	IRB 6700 Inv-300/2.60	IRB 6700 Inv-245/2.90
Axis 1	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°
Axis 2	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°
Axis 3	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°
Axis 4	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°
Axis 5	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°
Axis 6	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°

Robot motion speed

Robot version	IRB 6700- 200/2.60	IRB 6700- 155/2.85	IRB 6700- 235/2.65	IRB 6700- 205/2.80	IRB 6700- 175/3.05	IRB 6700- 150/3.20	IRB 6700- 300/2.70	IRB 6700- 245/3.00	IRB 6700 Inv-300/2.60	IRB 6700 Inv-245/2.90
Axis 1	110°/s	110°/s	100°/s	100°/s	100°/s	100°/s	100°/s	100°/s	100°/s	100°/s
Axis 2	110°/s	110°/s	90°/s	90°/s	90°/s	90°/s	88°/s	88°/s	88°/s	88°/s
Axis 3	110°/s	110°/s	90°/s	90°/s	90°/s	90°/s	90°/s	90°/s	90°/s	90°/s
Axis 4	190°/s	190°/s	170°/s	170°/s	170°/s	170°/s	140°/s	140°/s	140°/s	140°/s
Axis 5	150°/s	150°/s	120°/s	120°/s	120°/s	120°/s	110°/s	110°/s	110°/s	110°/s
Axis 6	210°/s	210°/s	190°/s	190°/s	190°/s	190°/s	180°/s	180°/s	180°/s	180°/s

Robot Applications

Material handling

Spot welding

应用

电弧焊 , 点焊 , 压机 , 码垛 , 零件的装卸 , 零件处理 , 测量 , 零件组装
